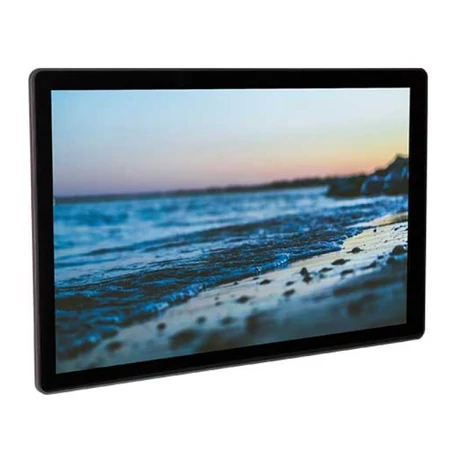

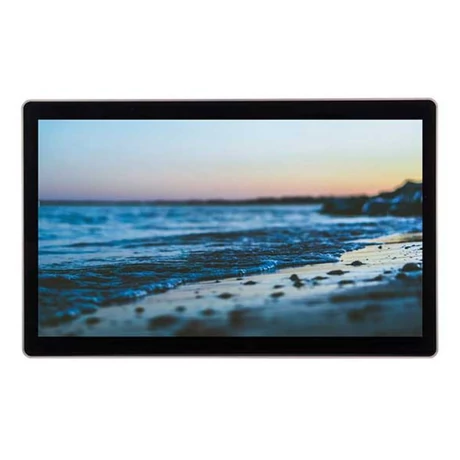

Rievtech RTS6156H HMI 15" universal display

Price:
2,174 EUR (1,712 EUR + VAT)

Display size: 15.6 ”16: 9 TFT LCD
Resolution: 1920 x 1024
Communication: COM1 / COM3: RS232 / RS485 / RS422; COM2: RS485 / RS422
Ethernet: Yes
Send email: Yes
FTP: Yes
VNC server: Yes
USB: Yes
SD card: Yes

Model: 900
Manufacturer: Rievtech
Shipping fee: 3 EUR
Availability: In stock
Please select the accessory products you would like to add to the cart!
Rievtech RS232 Communication Cable (PLC - HMI) Rievtech RS232 Communication Cable (PLC - HMI)
36 EUR (28 EUR + VAT)
Qty:db

Description

 Motherboard:
  • Processor: ARM Cortex A8 1 GHz CPU, Flash: 256 Mb, RAM: 512 DDR3
 Display:
  • Size: 15.6 "16: 9 TFT LCD
  • Resolution: 1920 x 1024
  • Colors: 24-bit

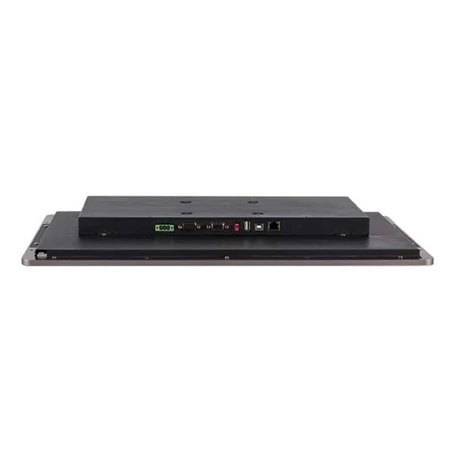

 Ports:
  • Soros: Com 1 / Com3: RS232 / RS485 / RS422
    Com 2: RS485 / RS232
  • Programming: Ethernet or USB
  • Ethernet: 2 x 10 / 100Mb
  • USB: 1 x USB 2.0
 Storage:
  • Flash 256 Mb
  • SD card
  • USB
  • Accessing data via FTP

With data collection and remote access.

Error handling

- Free Development Environment
- Offline simulation
- Built-in VNC server

Rievtech's new RTS display series can be used cost-effectively for display tasks.
As an enhancement to the RTS series, a number of new features have been added, such as pdf display, mysql
database connection using Macro, QR code generation, FTP client function and VNC client.

The 65 million color touch screens provide a user-friendly interface with a free programming environment. The program can be downloaded via microUSB or Ethernet port. The display can also be used as a VNC server, so the display content can not only be displayed with a client program, but depending on the setting, it can even be used for intervention. Client programs are available for different platforms, PCs or mobile devices, be it Android or iOS. Up to several clients can be connected to one display at a time. Displays provide not only display, intervention but also data collection.
The display can also be used for Modbus TCP / IP master or Modbus TCP / IP slave communication via the Ethernet port.

Recipe management functions that are already familiar with universal displays are also available, allowing you to easily manage several different parameters. Recipes can even be stored on a USB memory, so they can even be edited from a computer. Recipes can also be displayed, edited directly from the display, downloaded to the PLC or read from there.

An essential part of modern controls is the management and saving of alarms, whether on an HMI, USB memory or SD card. Alarms can be triggered by various predefined events, which can be divided into levels according to their importance. Those at the lowest level only inform the operator when the event has occurred, while those at the highest level can even stop control. Alarms can be acknowledged, acknowledgments can be logged, as can other user events.

rievtech hmi and PLC manufacturers

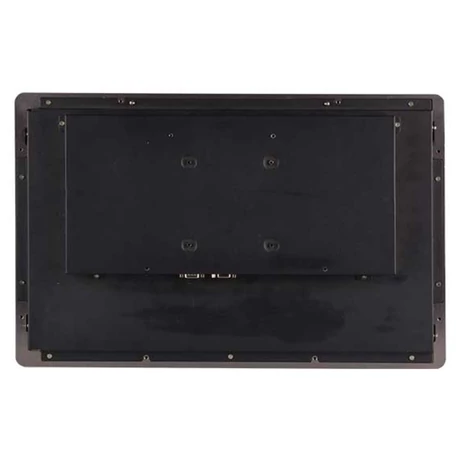

Dimensions: 394 x 256 x 36 mm

Cutout size: 380 x 245 mm
