Description

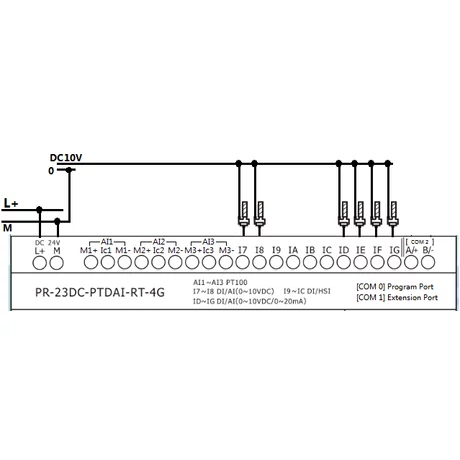

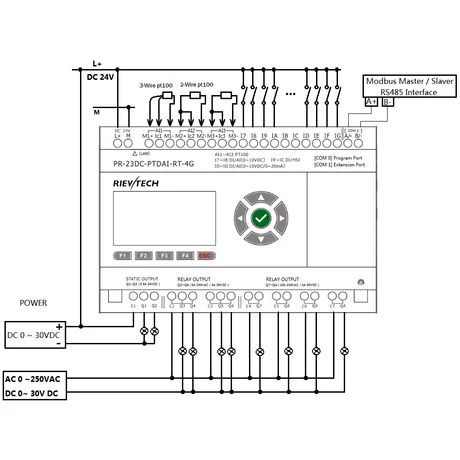

- PT100 inputs
- Built-in RS485 Port
- Built-in SD card slot
- Subroutine overlay blocks
- Up to 16 plug-ins
BUILT-IN WEB SERVER
A remote user can easily control and direct operations through a web browser. With the rapid development of industrial process controllers and a wide range of network applications, it has now become necessary to have a high level of accuracy and reliability of control unit data. This maximum embedded Web server meets stringent requirements such as obtaining control unit data or factors such as functionality, reliability, cost, size, consumption, and remote access. The new remote plc is powered by an embedded web server that can receive signals and thus remotely control devices. Embedded Web server mode is used to share data with an online client. This system can replace the PLC SCADA system.
MQTT PROTOCOL SUPPORT
The new remote plc will be able to collect data and send it to any given cloud service using MQTT. MQTT is a lightweight, PBX messaging protocol that is typically connected to a cloud. No intermediate gateway devices required!
Attached documents
Rievtech PR-E-16AC-R AC expansion module
Input: 8 pcs AC
Output: 8 relays
Rievtech PR-E-16DC-DA-R Relay expansion module
Input: 8 pcs (4 of which are analog 0-10V)
Output: 8 relays
Rievtech PR-E-PT100/PT1000 Temperature signal processor expansion module
Input: 3 pcs PT100
Rievtech PR-E-AI-V/I Analog input module (0-10V / 0-20mA)
Input: 4 analog 0-10V / 0-20mA Resolution: 14 bits
Rievtech PR-E-16DC-DA-TN Transistor expansion module
Input: 8 pcs (4 of which are analog 0-10V)
Output: 8 transistors (PNP) 0.5A 12-24V DC
Rievtech PR-E-AQ-VI Analog output module (0-10V / 0-20mA)
Output: 2 analog 0-10V / 0-20mA
Rievtech PR-RS485 Expansion module
Output: 3 RS485 ports and 1 terminating resistor
Rievtech PR-E-DC-16IN Input expansion module
Input: 16 pcs (of which 4 analog 0-10V)
Rievtech PR-E-DC-16DO Relay expansion module
Output: 16 relays
Rievtech PR-E-AC-16IN Input expansion module
Input: 16 pcs AC
Rievtech PR-E-AC-16DO Relay expansion module
Output: 16 relays
