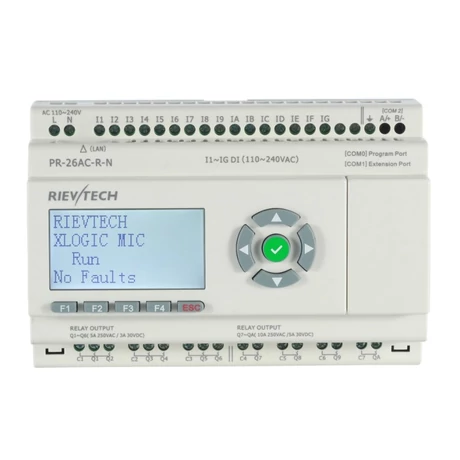

Rievtech PR-26AC-R-N with Ethernet PLC web server and built-in MQTT
Power supply: AC110 ~ 240V |
|
Model: | 085 |
Manufacturer: | Rievtech |
Shipping fee: | 3 EUR |
Availability: | In stock |
Description
- Built-in RS485 Port
- Built-in SD card slot
- Subroutine overlay blocks
- Up to 16 plug-ins
BUILT-IN WEB SERVER
A remote user can easily control and direct operations through a web browser. With the rapid development of industrial process controllers and a wide range of network applications, it has now become necessary to have a high level of accuracy and reliability of control unit data. This maximum embedded Web server meets stringent requirements such as obtaining control unit data or factors such as functionality, reliability, cost, size, consumption, and remote access. The new remote plc is powered by an embedded web server that can receive signals and thus remotely control devices. Embedded Web server mode is used to share data with an online client. This system can replace the PLC SCADA system.
MQTT PROTOCOL SUPPORT
The new remote plc will be able to collect data and send it to any given cloud service using MQTT. MQTT is a lightweight, PBX messaging protocol that is typically connected to a cloud. No intermediate gateway devices required!
Attached documents
Hasonló termékek
Web server: Yes
Expandable: Yes (16 pcs PR-E)
LCD: Yes
MQTT: Yes (built-in)
Input: 12 pcs (of which 6 analog 0-10V and 2 pcs 0-10V / 0-20mA)
Output: 6 relays
Web server: Yes
Expandable: Yes (16 pcs PR-E)
LCD: Yes
MQTT: Yes (built-in)
Input: 12 pcs AC
Output: 6 relays
Web server: Yes
Expandable: Yes (16 pcs PR-E)
LCD: Yes
MQTT: Yes (built-in)
PWM: 6 db (10KHz)
Input: 12 pcs (of which 6 analog 0-10V and 2 pcs 0-10V / 0-20mA)
Output: 6 transistors
Power supply: AC110 ~ 240V
Web server: Yes
Expandable: Yes (16 pcs PR-E)
LCD: Yes
MQTT: Yes (built-in)
Input: 8 pcs
Output: 4 relays
Web server: Yes
Expandable: Yes (16 pcs PR-E)
LCD: Yes
MQTT: Yes (built-in)
Input: 8 (of which 4 are analog)
Output: 4 relays
Power supply: DC24V
Web server: Yes
Expandable: Yes (16 pcs PR-E)
LCD: Yes
MQTT: Yes (built-in)
2G / 4G / GSM: No
SMS: No
Email: No
Wifi: No
PWM: Yes (Q1-Q2 10KHz)
Input: 16 pcs (of which 8 analog 0-10V and 4 0-10V / 0-20mA)
Output: 10 pcs (of which 2 transistors PNP and 8 relays)
Expandable: yes
LCD: Yes
Input: 8 inputs
Output: 4 relays
Ethernet port: Yes
Programming language: function block (FBD), xlogic software
Programming: via Ethernet port by IP address
Expandable: yes (3 pcs PR-E)
LCD: Yes
Input: 8 inputs (4 of them analog 0-10V)
Output: 4 relays
Ethernet port: Yes
Programming language: function block (FBD), xlogic software
Programming: via Ethernet port by IP address
