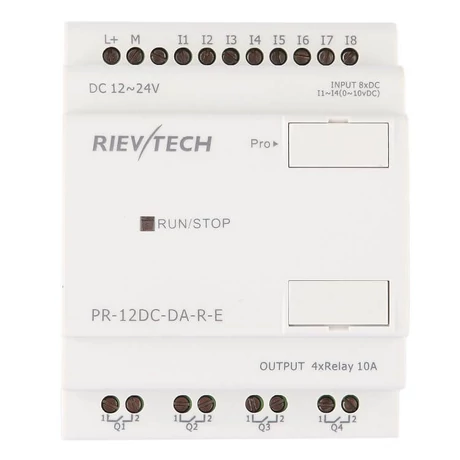

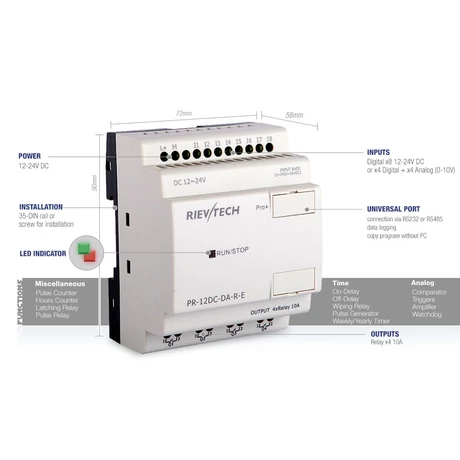

Rievtech PR-12DC-DA-R-E PLC
Price:
107 EUR
(85 EUR + VAT)
|

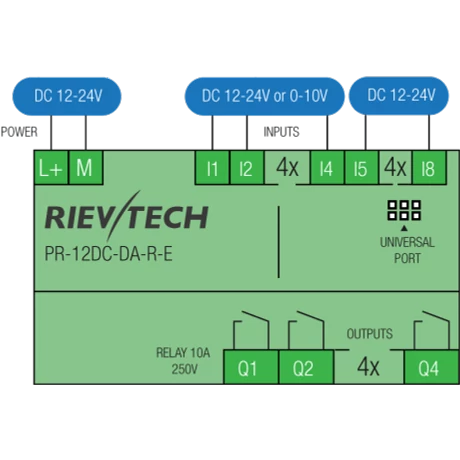

Power supply: DC12-DC24V Expandable: No LCD: No Input: 8 pcs (of which 4 analog 0-10V) Output: 4 relays |
|
| Model: | 034 |
| Manufacturer: | Rievtech |
| Shipping fee: | 3 EUR |
| Availability: | In stock |
Description
Timer: 64
Counter: 64
Function block: 64
Operating temperature: -20 ° C to + 55 ° C
Storage temperature: -40 ° C to + 70 ° C
Protection: IP20
RTC accuracy: MAX ± 2S / day
RTC Backup at 25 ° C: 20 days
Program and settings Backup: 10 years
Data shutdown delay: 10 years
Cycle time: typ. 0.6ms ➞ 8.0ms
Dimensions: 72 * 90 * 61 (Unit, mm）
Certification: CE, C-UL, ROSH, REACH
To change parameters on the LCD using the keyboard: No
Mounting: 35 mm DIN rail or screw
Expandable: No
Password protection: Disable 4-digit password protection or program upload function
Communication interface: TTL interface, 1 Program / RS232 port
Communication protocol: Modbus RTU / ASCII
Attached documents
