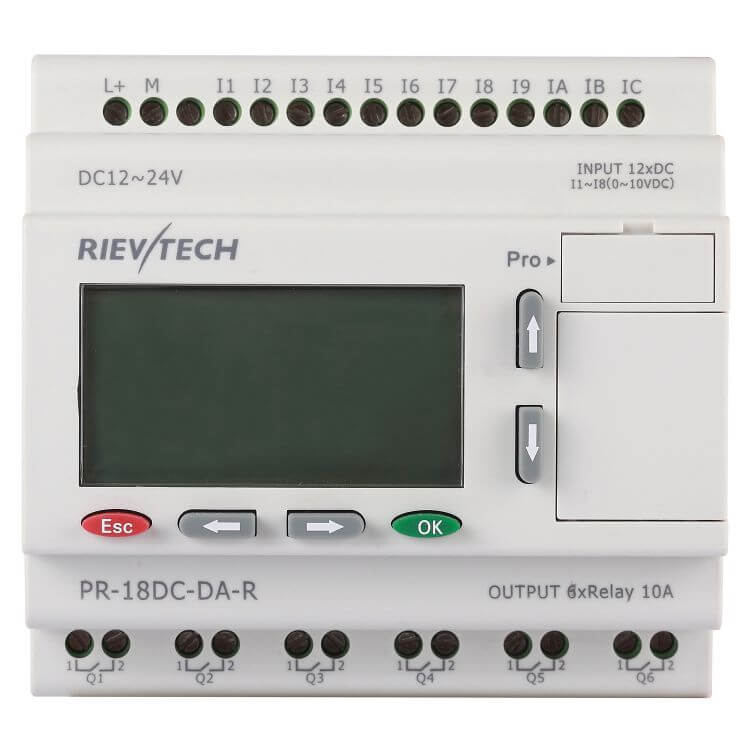

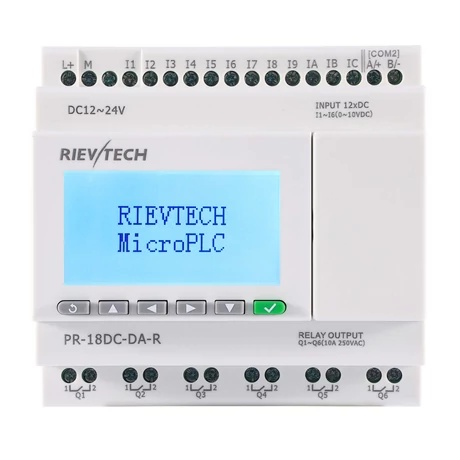

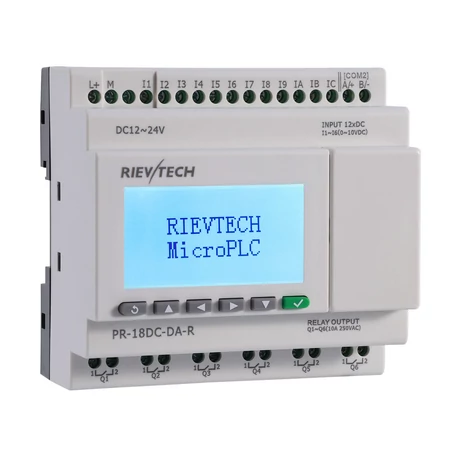

Rievtech PR-18DC-DA-R PLC (relay output)
Power supply: DC12-DC24V Expandable: Yes (16 pcs PR-E) LCD: Yes Input: 12 pcs (of which 6 analog 0-10V) Output: 6 relays |
|
Model: | 042 |
Manufacturer: | Rievtech |
Shipping fee: | 3 EUR |
Availability: | In stock |
Description
Application examples:
- Boiler House Control a>
- Family heating / cooling system
Timer: 1024
Counter: 1024
Function block: 1024
Operating temperature: -20 ° C to + 55 ° C
Storage temperature: -40 ° C to + 70 ° C
Protection: IP20
RTC accuracy: MAX ± 2S / day
RTC Backup at 25 ° C: 20 days
Program and settings Backup: 10 years
Data shutdown delay: 10 years
Dimensions: 95 * 90 * 55 (Unit, mm)
Certification: CE
To change parameters on the LCD with the keyboard: yes
Mounting: 35 mm DIN rail or screw
Expandable: 16 modules (PR-E-16)
Password protection: Disable 4-digit password protection or program upload function
Communication interface: TTL interface, 1 Program / RS232 port
Communication protocol: Modbus RTU / ASCII
Attached documents
