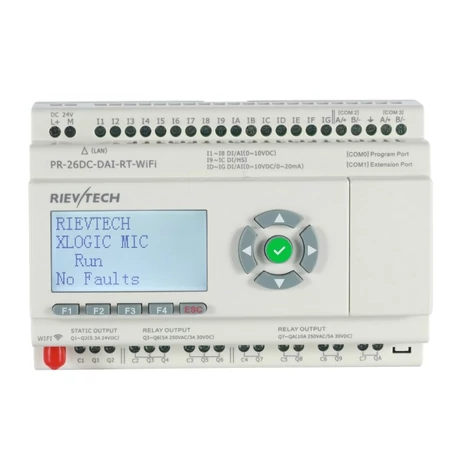

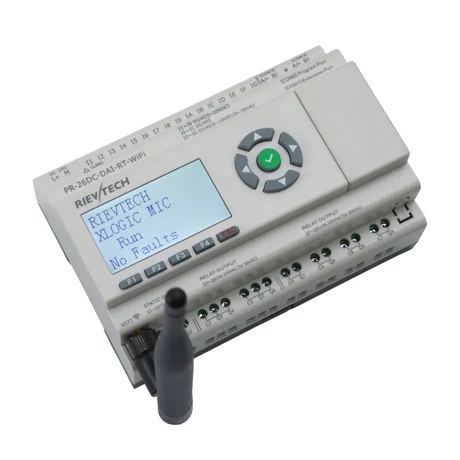

Rievtech PR-26DC-DAI-RT-WIFI with WIFI PLC web server and built-in MQTT
Power supply: DC24V Web server: Yes Expandable: Yes (16 pcs PR-E) LCD: Yes MQTT: Yes (built-in) 2G / 4G / GSM: No SMS: No Email: No Wifi: Yes PWM: Yes (Q1-Q2 10KHz) Input: 16 pcs (of which 8 analog 0-10V and 4 0-10V / 0-20mA) Output: 10 pcs (of which 2 transistors PNP and 8 relays) |
|
Model: | 091 |
Manufacturer: | Rievtech |
Shipping fee: | 3 EUR |
Availability: | In stock |
Description
- Built-in RS485 Port
- Built-in SD card slot
- Subroutine overlay blocks
- Up to 16 plug-ins
BUILT-IN WEB SERVER
A remote user can easily control and direct operations through a web browser. With the rapid development of industrial process controllers and a wide range of network applications, it has now become necessary to have a high level of accuracy and reliability of control unit data. This maximum embedded Web server meets stringent requirements such as obtaining control unit data or factors such as functionality, reliability, cost, size, consumption, and remote access. The new remote plc is powered by an embedded web server that can receive signals and thus remotely control devices. Embedded Web server mode is used to share data with an online client. This system can replace the PLC SCADA system.
MQTT PROTOCOL SUPPORT
The new remote plc will be able to collect data and send it to any given cloud service using MQTT. MQTT is a lightweight, PBX messaging protocol that is typically connected to a cloud. No intermediate gateway devices required!
